Kingaut manufacturer electric lifting column desk

FOB Reference Price:Get Latest Price
$75.00 - $88.00 / Piece | 10 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Specific Use:
Office Desks
General Use:
Commercial Furniture
Type:
Office Furniture
Material:
Metal
Metal Type:
Aluminum
Appearance:
Modern
Size:
Custom Size
Place of Origin:
Zhejiang, China
Brand Name:
Kingaut
Model Number:
XL01
Product Name:
Kingaut manufacturer electric lifting column desk
Warranty:
3 years
Certificate:
CE, Rohs, Fcc
Application:
workstation, computer workstation, work benches
Color:
Black or grey
Limit switch:
Built-in
IP grade:
IP43
Operating temperature:
+5℃--- +40℃
Tube material:
Aluminum tube
Stroke length:
100-400 or option>400
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
We choose carton plus pearl wool (EPE)
We also accept customer's request. please inform us in advance.
Port
Ningbo
Lead Time :
3-5 working day
Product Description
Kingaut manufacturer electric lifting column desk
XL01  Features

1) Column is designed for a wide range of workstation applications, like computer workstations, work benches, assembly desks or kitchen.

2) With the Hall sensors built-in, XL01 can be operated either as single column or several columns in synchronized movement by choosing a control box with micro-processor.
Product Name
Kingaut manufacturer electric lifting column desk
Material
Aluminum tube
Color
Black, white or grey
Standard
UL60601/ CE/ Rohs/ Fcc
Grade
IP43
Used
Computer workstation, work benches, assembly desks or kitchens
Column
Load capacity push

4000N/2000N/1500N
Load capacity pull

4000N/2000N/1500N
Input
24VDC/12VDC
Speed at full load
4mm/s  or  7mm/s  or  10mm/s
Stroke length
100-400 or option>400
Color
Black or Grey
Mounting
By screws on the top and bottom plate(option)
Overload protection
Integrated in appropriate control box
Limit swith
Built-in
Duty switch
10%, max 2 minutes continuous use
Tube material
Aluminum tube
IP grade
IP43
Operating temperature
+5℃----  +40℃
Standard
UL60601 / CE/ Rohs / Fcc
Optional features
Hall sensors option

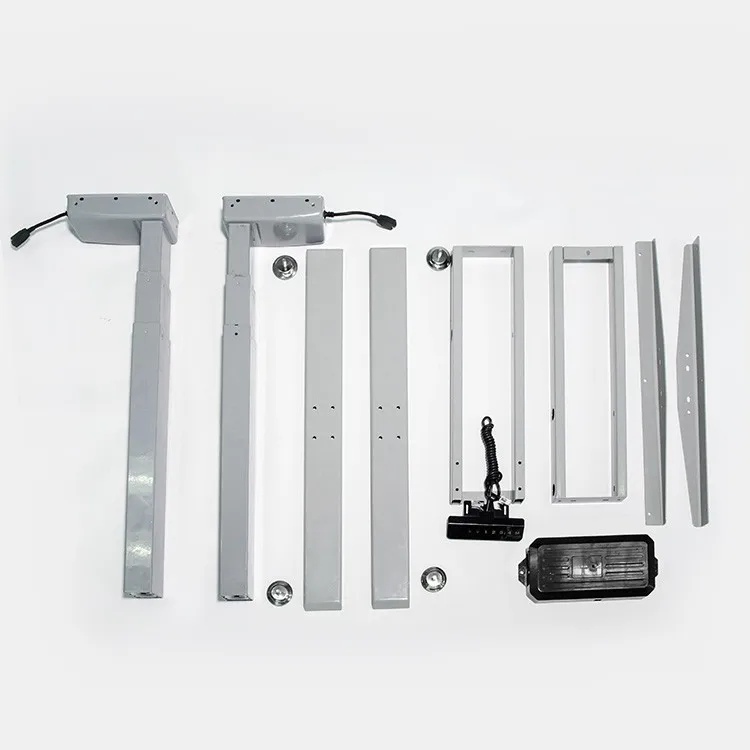

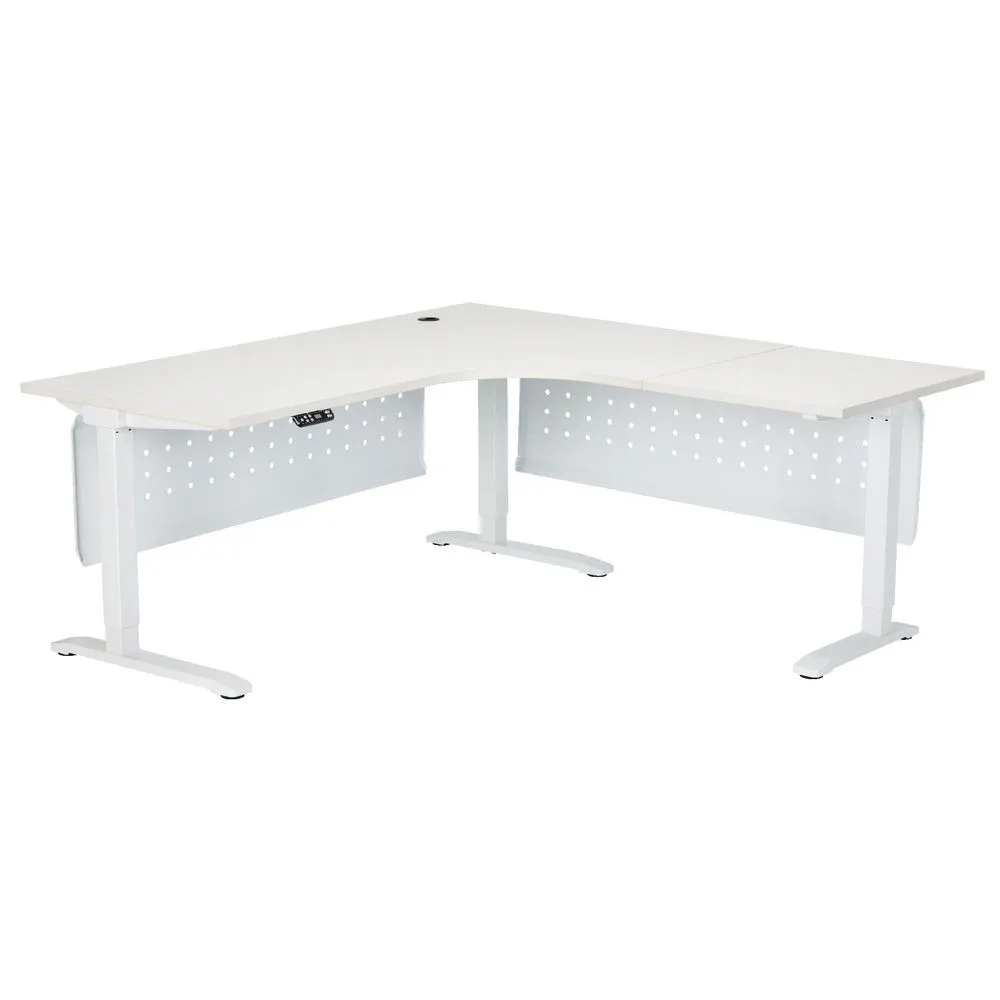

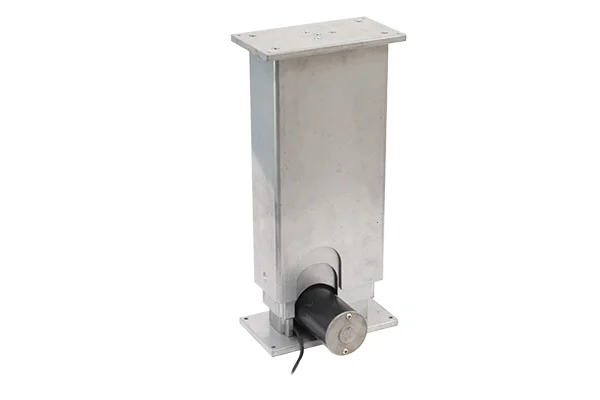

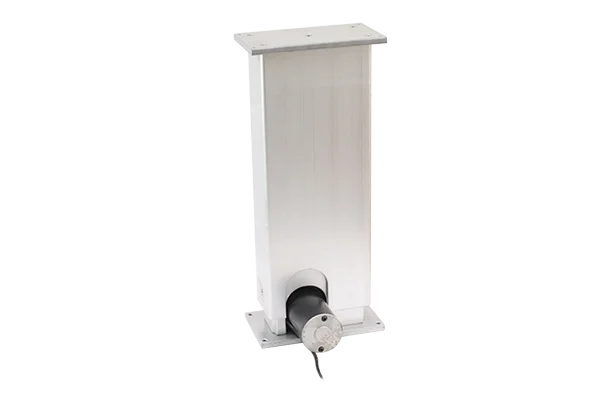

Products Show

Kingaut manufacturer electric lifting column desk

Kingaut manufacturer electric lifting column desk

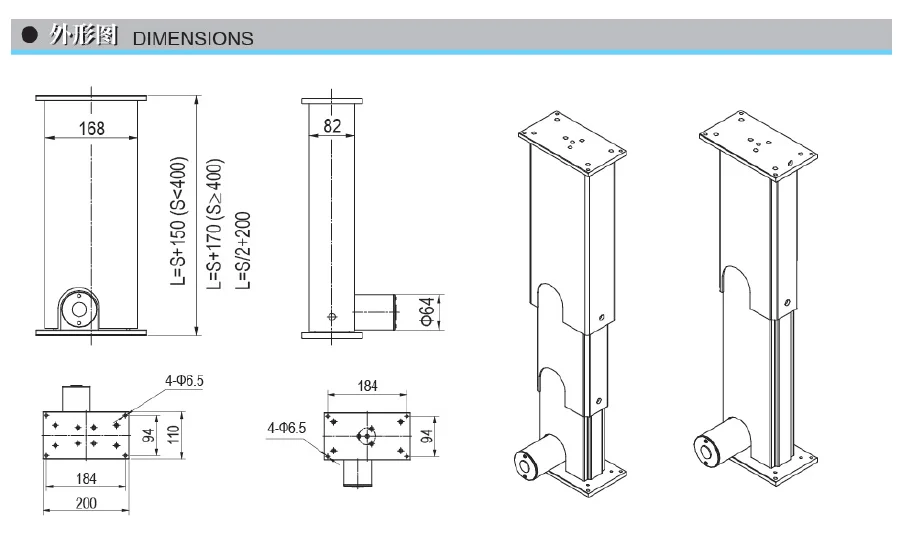

Dimension

Kingaut manufacturer electric lifting column desk

Perfomance


Recommended parts


Control box
Number of actuator outputs
1-2 outputs
Output Voltage
24VDC or 29VDC
Input Voltage
110VAC or 230VAC
Transformer power
50W
Hand/ Foot control plugs
Din 4 bend plug
Power plug
Option
Color
Black or grey
Duty cycle
10%, max 2 minutes continuous use
Overload protection
PTC protection
Fuse
Inside or outside(option)
Cable length
3M
IP Grade
IP43
Ambient temperature
+5℃---- + 40℃
Standard
UL60601/CE
Optional feature
9V*2 batteries built-in
RF receiver built-in
Our Service

1.OEM service is welcome.

2.We will provide all the details to you during the mass productions.

3.Your requirements & complains are highly respected in the first time.

4.Warmly welcome to factory visiting and order inspection.

5.Small sample orders are available.


Why Kingaut

A reliable supplier

1.Our factory price

Our factory price will make you more competitive in the market than

Others.

2.100% inspection quality standard

All our products are 100% inspected by our workmen, to ensure 100% good quality products to customers.

3.Most of our staff has been with us since day one and are highly skilled and knowledgeable in customer service, sale and technical advice.


FAQ

1.How many years’ warranty?

Five years for the desk frame, and three years for electric system.

2.Can I have a sample for testing?

We can supply the free sample for you.

3.How about the after sales service? How will you deal with the product faulty?

We make sure all the products we ship out is 100% good quality. Just to avoid inconvenience for clients, we advise clients to buy some extra products in the first order as a backup stock, if anything happens, we can response and provide service quickly. A free replacement will be sent to the customer in the next order if are responsible for the problem.


Our Company
Packing & Delivery

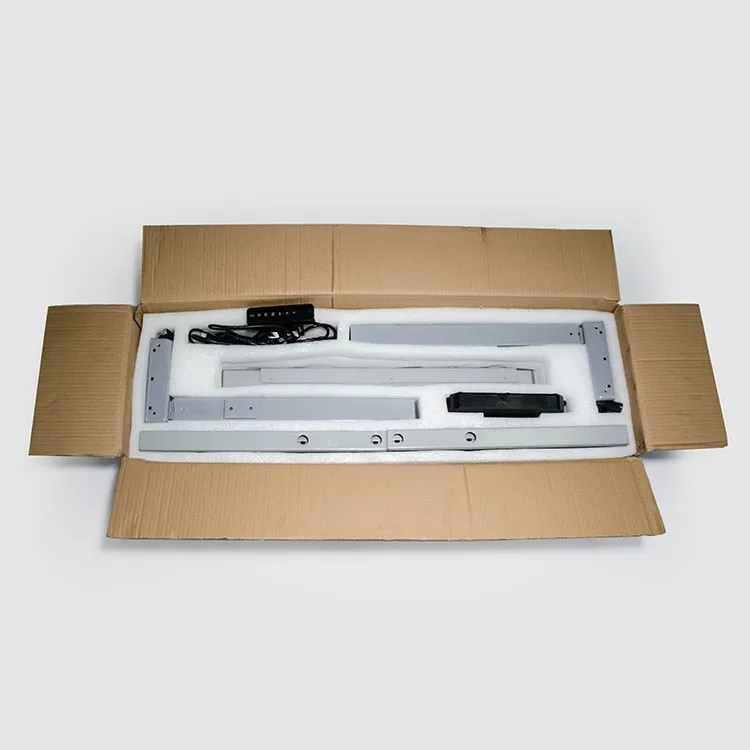

Packing Details  : Packing, carton plus pearl wool(EPE)
