2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor

FOB Reference Price:Get Latest Price
$12.00 - $15.00 / Piece | 1 Piece/Pieces (Min. Order)
Samples:
Place Sample Order
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Kingaut
Model Number:
XT09A
Voltage(V):
12V/24V
Output Power:
50W
Usage:
garage door opener and car door opener, Boat, Car, Home
Certification:
CCC, ce, RoHS, Fcc
Type:
GEAR MOTOR
Torque:
high
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Waterproof
Speed(RPM):
High Speed
Continuous Current(A):
Current
Efficiency:
IE 1
Product Name:
mini motor electric linear actuator 12V 24V dc gear motor
Max speed:
3-17mm/s
Application:
Dentist chair, hospital, homecare
Brand:
Kingaut
Voltage:
12V or 24V
Stroke length:
100mm-400mm or option>400mm
Model number:
Kingaut XT09A
Product name:
actuator for machine
Load capacity push:
6000N
Supply Ability
Supply Ability:
10000 Set/Sets per Month 2017 high quality hot selling recliner chair linear actuator
Packaging & Delivery
Packaging Details
2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor packing details
Linear actuator : we choose carton plus pearl wool or EPE.
we accept customer's special packing, and please inform us in advance
Port
Ningbo
Lead Time :
3-5 working days after full payment
Product Description
2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor Specifications

Delicate design
                                       High accuracy
                                                                          Complete Synchronization

Self-locking Performance   A good motor to drive directly


2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor Specification


Features:
1) Quiet and powerful design

2) Up to 6000N load capacity

3) Idea for patient lift application


Load capacity push
(N)
6000N
Speed at full load                                                              (mm/s)
3mm/s-----17mm/s
Input                                                                                     (VDC)
12 or 24
Stroke length                                                                             (mm)
100mm---400mm or option>400mm
Color
Black or grey
Mounting position
Option H or O
Limit switch
Built-in
Overload protction
Integrated in appropriate control box
Duty cycle
10% max 2 minutes continuous use
Inner tube
Aluminum  tube
Top clevis
Zinc--alloy
End clevis
Plastic
IP Grade
IP54

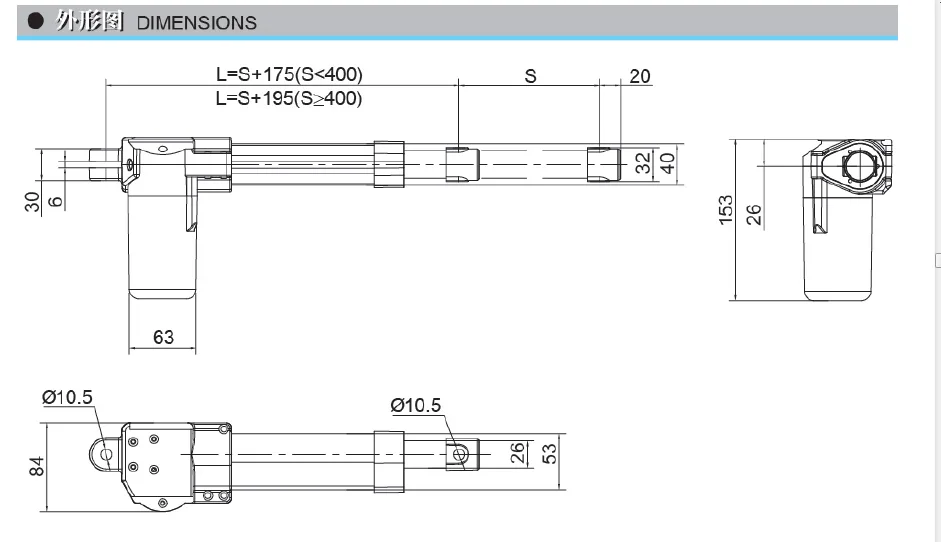

2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor dimensions

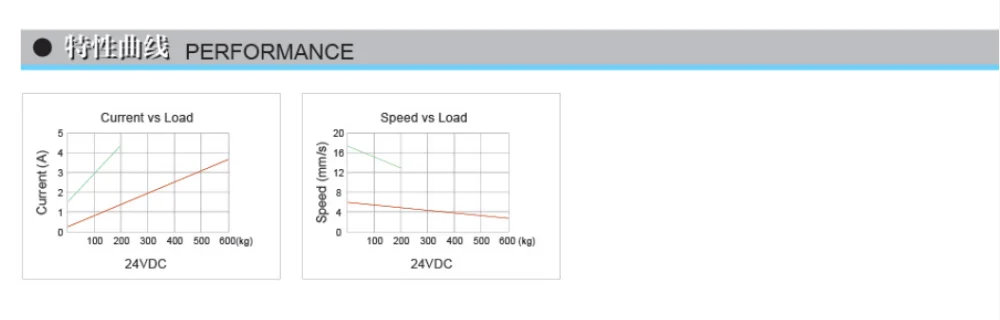

2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor  performance

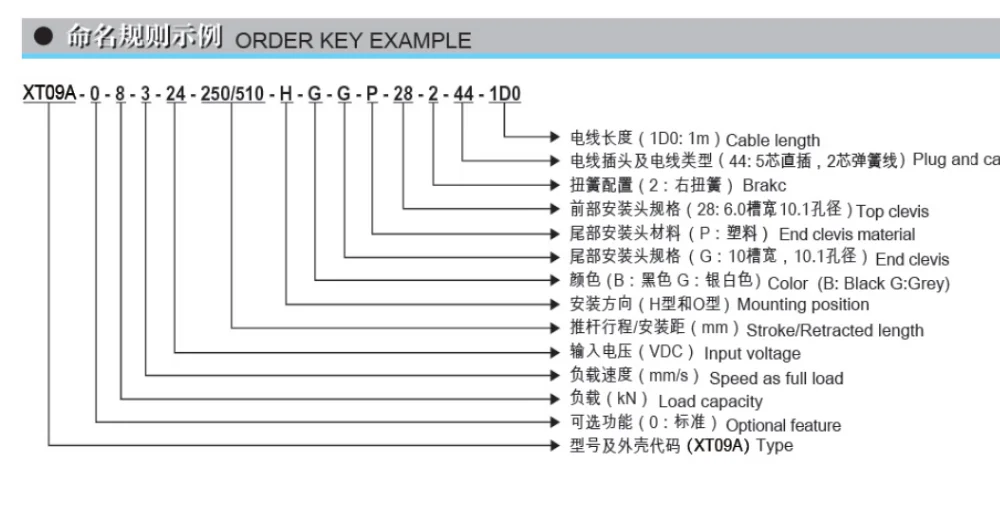

2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor order key example
2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor Control Box XK02



Features

1. Connection of max 4 actuators and 1 operating element

2.   Have battery charge option built-in and IP54


Number of actuator outputs
1-4 outputs
Output Voltage
24Volt
Input Voltage
110VAC or 230 VAC
Transformer power
50W
Actuator plugs
Din 4 bend plug
Hand/Foot control plugs
Bend plug
Power plug
Option
Color
Black or Grey
Duty cycle
10%, max 2 minutes continuous use
Overload protection
Shunt or total road protection (option)
Optional feature
9V * 2 batteries built-in
RF receiver built-in
Fuse
Can be changed from outer
Cable length
3m
IP grade
IP54
Ambient temperature
+5℃-40℃
Standard
CE Rohs Fcc

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor


Kingaut hand controls  XS07A



Detailed Images

Machine Parts

Name: 2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor  hand control
Brand: XS02A-2
Original: Ningbo, China(Mainland)


2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor is widely used in industry equipment, farm machine, etc. With heavy load capacity, install easily.


1AC 110V/230V

2.Self-locking

3.Gear box

4.Duty cycle(10%)

5.Max load: 6000N

Contact us
Certifications
2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor Certification
Packing & Delivery
Packaging
Size
70(L) * 35(W) * 15.5 (D)
Weight
3.5kg



Packaging Details
The normal package is wooden
box(Size: L*W*H).
Our Service

2017 high quality hot selling mini motor electric linear actuator 12V 24V dc gear motor Service


Why Kingaut
     A reliable supplier
1.Our factory price
   Our factory price will make you more competitive in the market than others.

2.100% inspection quality standard
    All our products are 100% inspected by our workmen, to ensure 100% good quality products to customers.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

 Our service

 OEM service is welcome

    We will provide all the details to you during the mass productions.

Your requirements & complains are highly repected in the first time.

 Warmly welcome to factory visiting and order inspection.
